NIRLine Series
Brand：Avantes

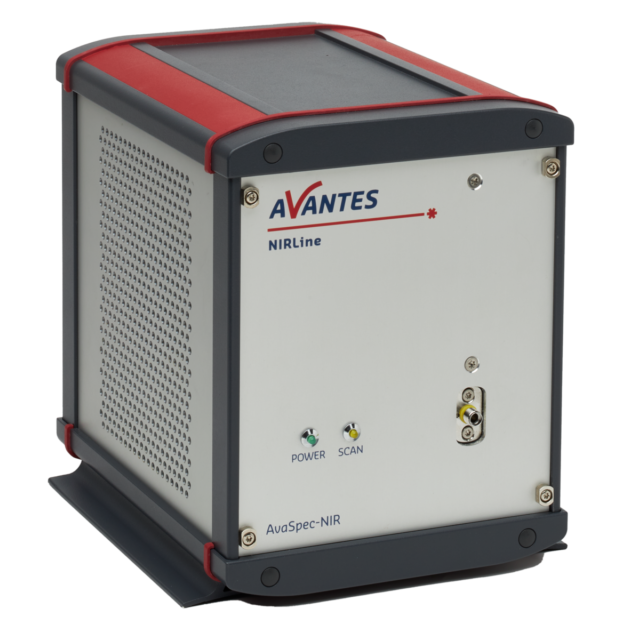

Instruments in our AvaSpec NIRLine are high-performance, near-infrared spectrometers that are optimized for the demands of measuring long wavelengths. This line provides leading-edge performance for dispersive NIR instruments with a toroidal focusing mirror and dynamic dark correction for enhanced stability.
NIR is an acronym for Near-Infrared. It is a spectroscopic method that uses the near-infrared region of the electromagnetic spectrum between the wavelengths of 700 to 2500 nm. It is widely used for the analysis of food, agricultural, pharmaceutical/healthcare and chemical products.
The NIRLine is comprised of both thermoelectrically cooled and uncooled instruments. The AvaSpec-NIR256/512-1.7 features an uncooled 256 or 512 pixel InGaAs detector. All other instruments in the NIRLine have thermoelectric, peltier-cooled InGaAs detectors which support cooling down to -25°C against ambient.
The AvaSpec NIRLine instruments are fully compatible with our AvaSpec-StarLine and SensLine spectrometers. Instruments in the NIRLine are available as lab instruments or OEM modules for integration into customers’ existing systems.
The NIRLine series of spectrometers are designed for a range of application areas, as follows:
‧ Determination of moisture content in liquid solid and powder samples‧ Quality control
‧ Quantitative and qualitative measurement of volatile organic compounds such as ethanol and methanol
‧ Polymer material characterization identification and material identification
‧ Illuminance measurement, such as solar monitoring
‧ Qualitative measurements of feed and food
|
|
AvaSpec-NIR256/512-2.5-HSC-EVO (TEC Cooled)
|
|

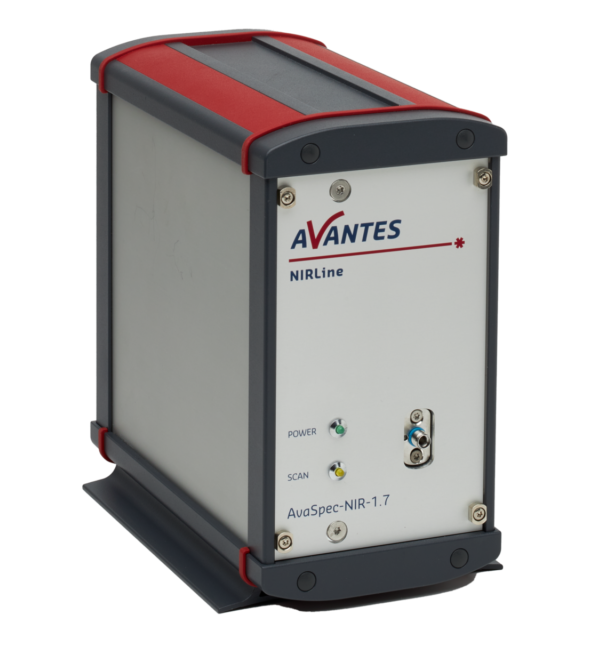

AvaSpec-NIR256/512-1.7-HSC-EVO; Cooled NIR spectrometer up to 1700nm
|
NIR Spectrometers from 800 to 1160 nm
|
-AvaSoft-Basic
-AvaSoft-Full
-AvaSoft-All
