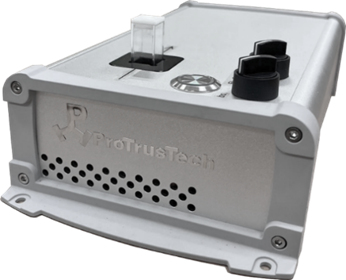

Vis/PL Spectrometer
white light source and two sets of different single wavelengths light sources, a spectrometer which can measure absorption and fluorescence spectrum, and suitable for water quality analysis, DNA, RNA quantitative analysis, cell research, analytical chemistry and other fields. Easy to operate, it is one of the most indispensable tools in your laboratory.
Dual Functional Spectrometer can measure absorption and fluorescence spectra, and the minimum volume that can be measured with using a standard Cuvette is 0.9 mL.
1. Absorption measurement application, scanning range 400-700 nm
2. Fluorescence measurement application, LED excitation wavelength 365 nm, 470 nm, or designate other wavelength 275, 385, 400, 420 nm.
Suitable for various fluorescent dyes
• 365 nm wavelength: Hoechst 33342/33258, DAPI, Andy FluorTM 350, 4-Methylumbelliferone
• 470 nm wavelength: SYBR Green, PicoGreen, GFP, Propidium Iodide (PI), Calcein AM, DCFHDA
The report format contains
• Sample full spectrum and quantitative wavelength absorption values, excitation light source wavelength and fluorescence spectrum
• Calibration curve, equation and R2 value
• Print date
• Output format PDF
Application field
• Life science research
DNA and RNA determination : accurately measure nucleic acid samples , support gene expression and genomics research.
Protein concentration determination : suitable for protein analysis and protein structure research.
• Cell research
Cell concentration determination : rapidly measure the concentration of cell suspensions to support cell biology research.
Fluorescent probe detection : measure fluorescently labeled probes, apply to cell imaging and analysis.
• Chemical analysis
UV-VIS spectroscopy : widely apply to compound analysis and quality control.
Dynamic measurement : monitoring concentration changes during chemical reactions.
Ordering information:
Fluorescence standard light source is 365, 470 nm
Optional wavelengths : 275, 385, 400, 420 nm
Instrument dimension : 260 x 135 x 60 mm
